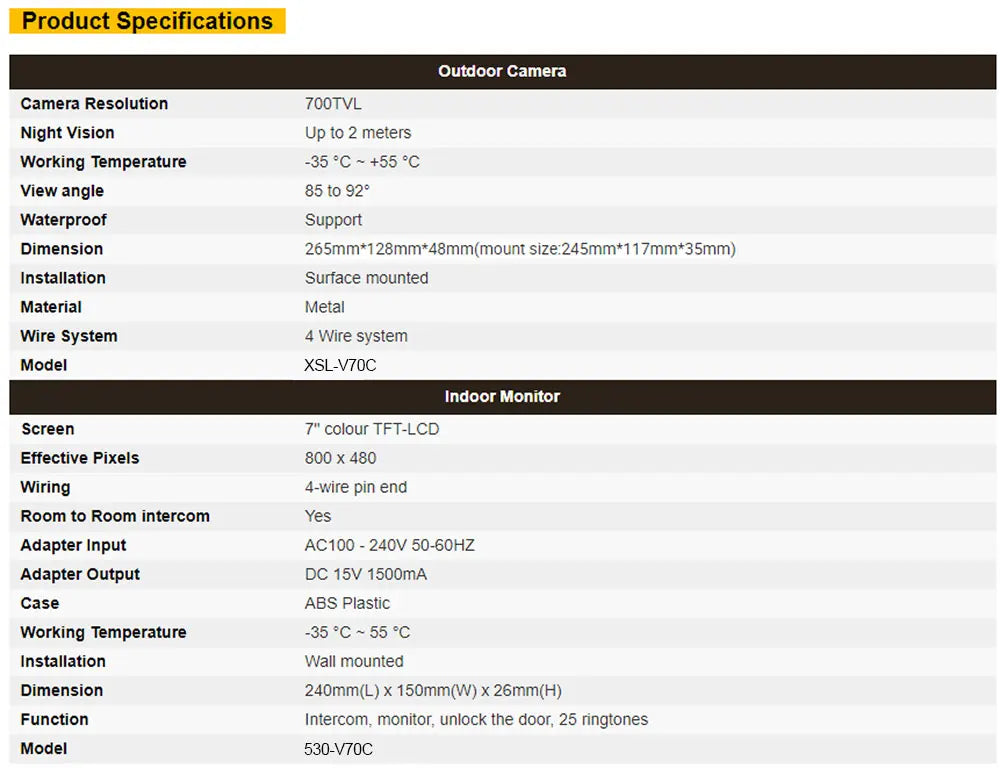

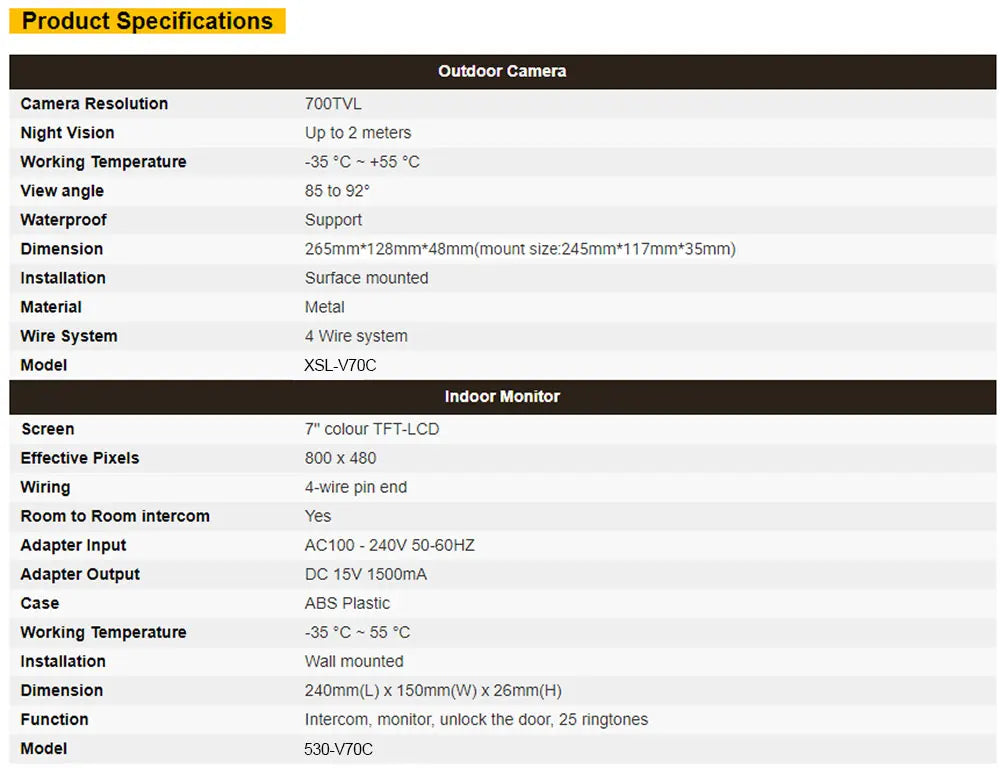

SPECIFICATIONS

Access Control: Inductive Card

Answering Mode: Hands-free

Brand Name: AJXML

Camera: COLOR

Camera Sensor type: CMOS

Certification: CE

Communication Interface: Wired

Connection Method: Wired

Display Screen Size(inch): 7

Display Screen Type: COLOR

Doorbell: Yes

High-concerned chemical: None

IP Camera Interface: No

Installation: Wall Mounting

Kit Configuration: One to Four Video Doorphone

Material: Aluminium alloy

Origin: Mainland China

Plug Type: EU Plug,US Plug,AU Plug,UK Plug

Power: 110-220V

Power (W): 220v

Resolution: > 420 TV Line

Samrt Home Interface: Yes

Sensor Size(Inch): 1/3

Size: 7inch LCD

Smart home platform: Other

Technology: ANALOG,ANALOG

Type: intercom system

Viewing Angle (°): 90

Waterproof: Yes

Zone Input: None

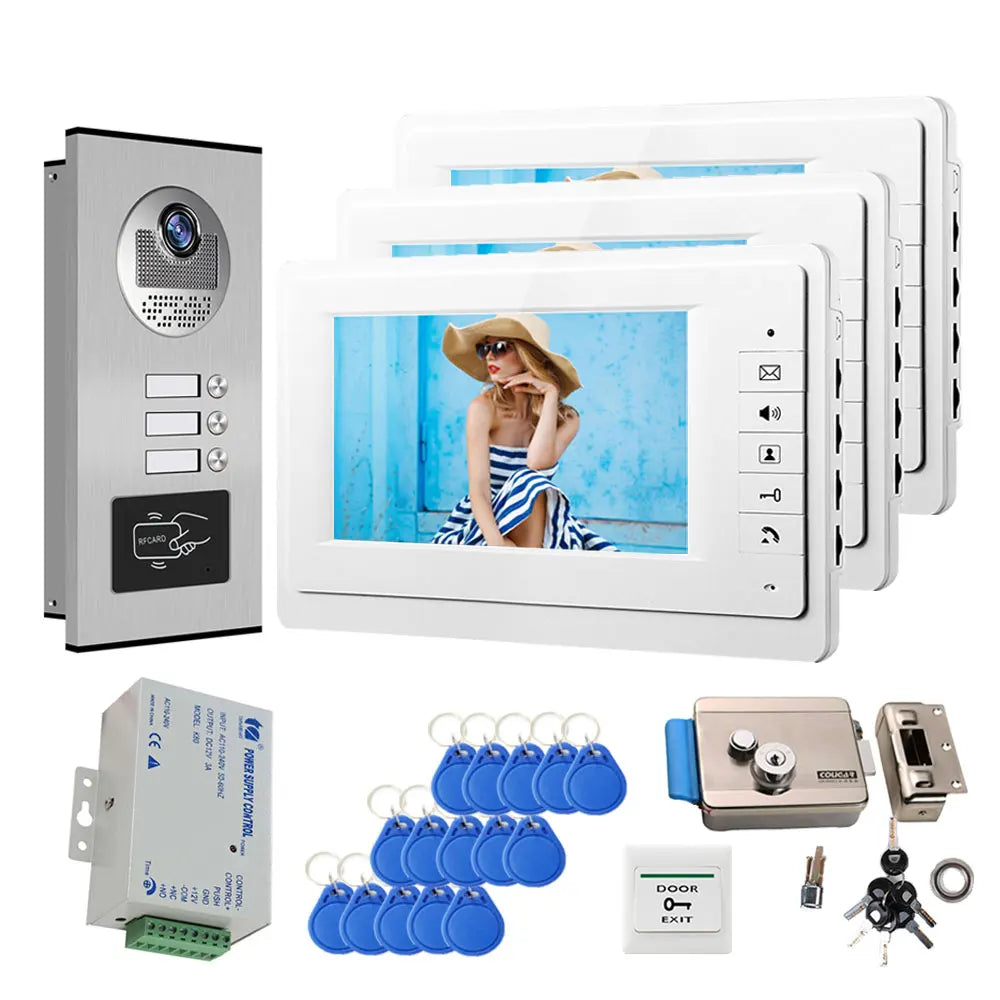

7 Inch Color Video Door Phone doorbell RFID Access Control Camera System for 2/3/4 Unit multi apartments Intercom

About this item

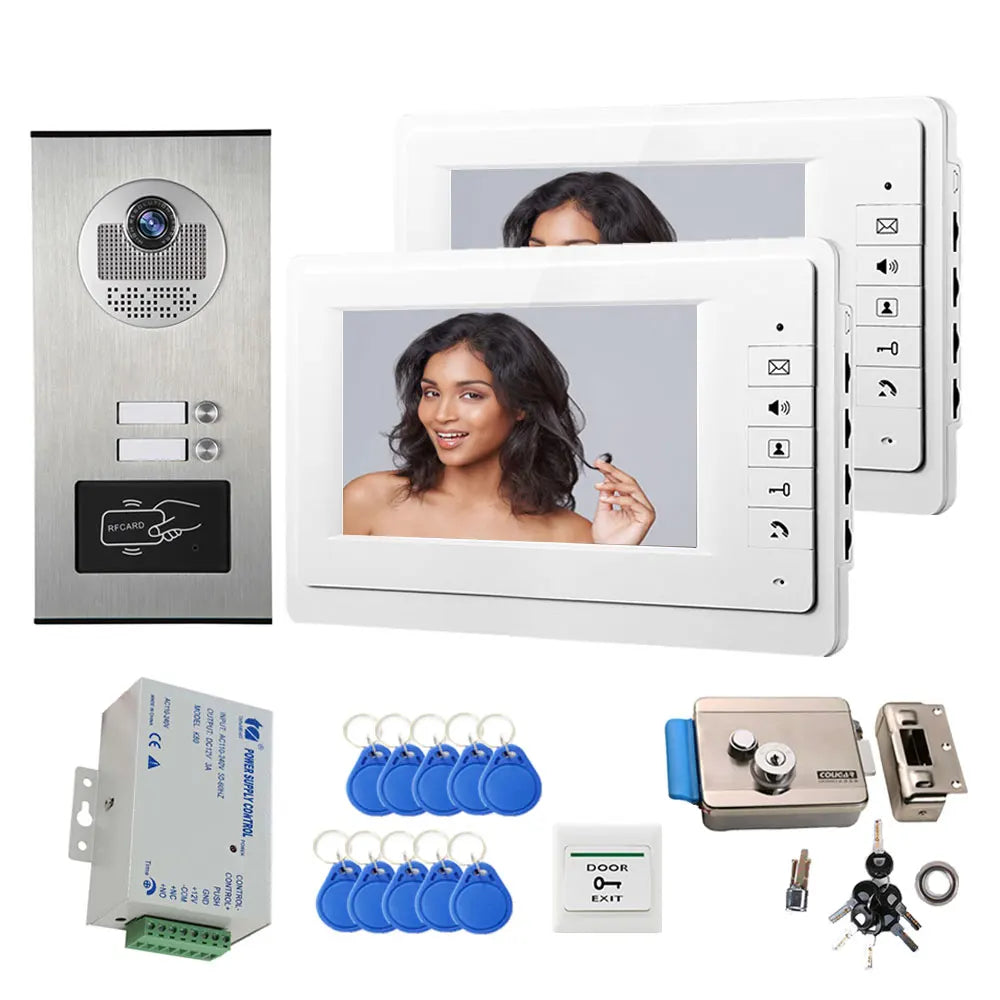

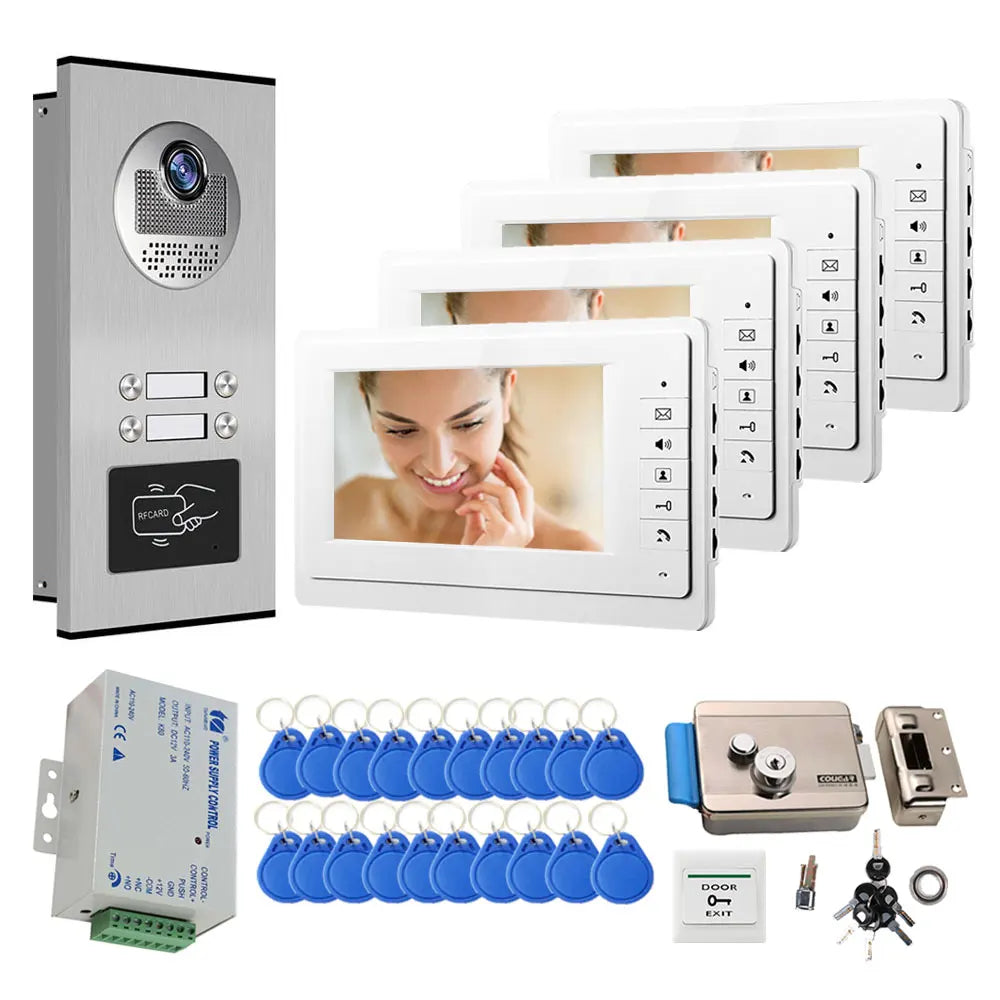

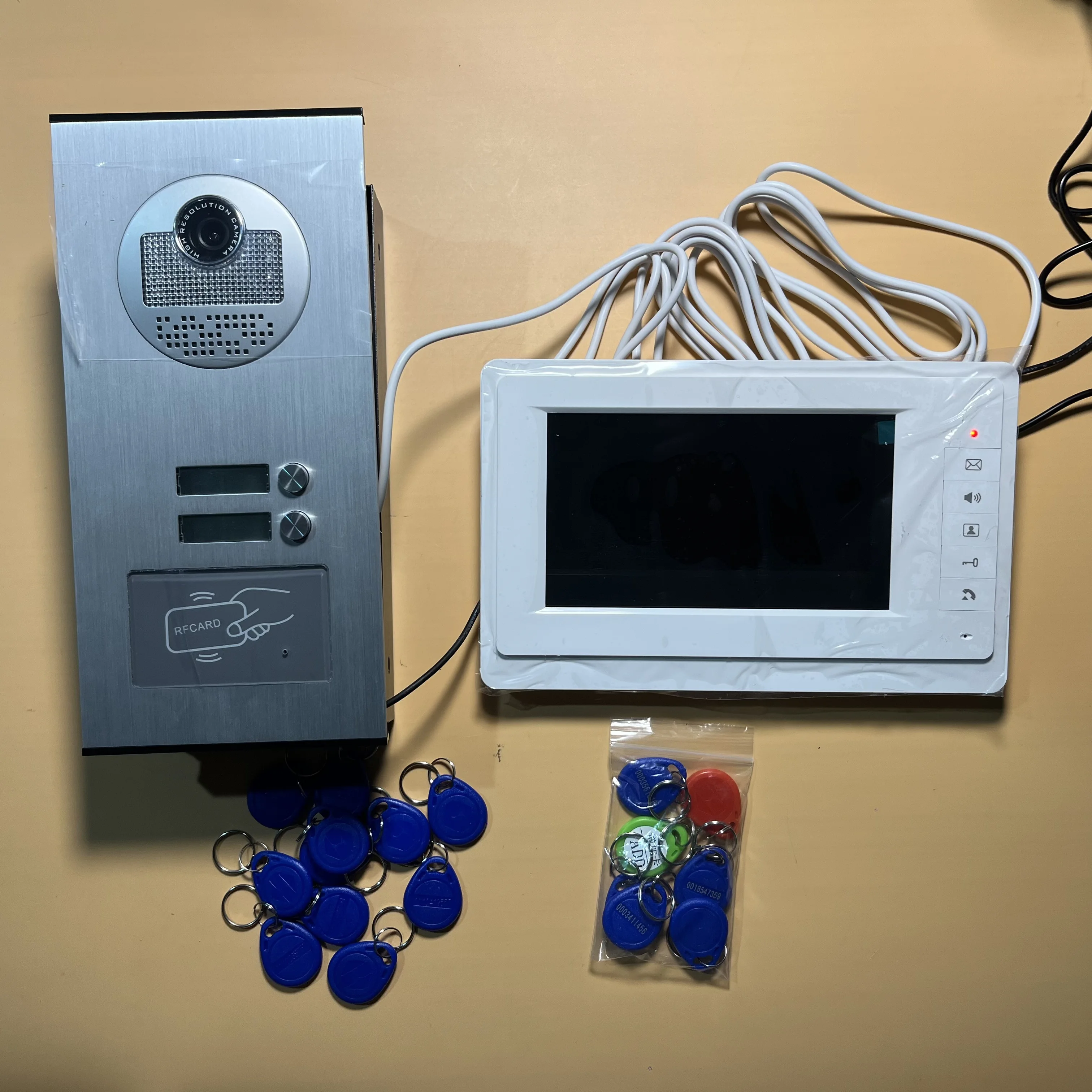

1 pcs outdoor camera and 3 pcs indoor monitor video intercom doorbell system,supporting 1 building which has 3 households.you can both see and speak with all visitors.

This system comes with 5 ID keyfobs(including added keyfob and deleted keyfob) , There are 2 ways to open the door lock using the ID keyfobs or "unlock" button on the monitor.

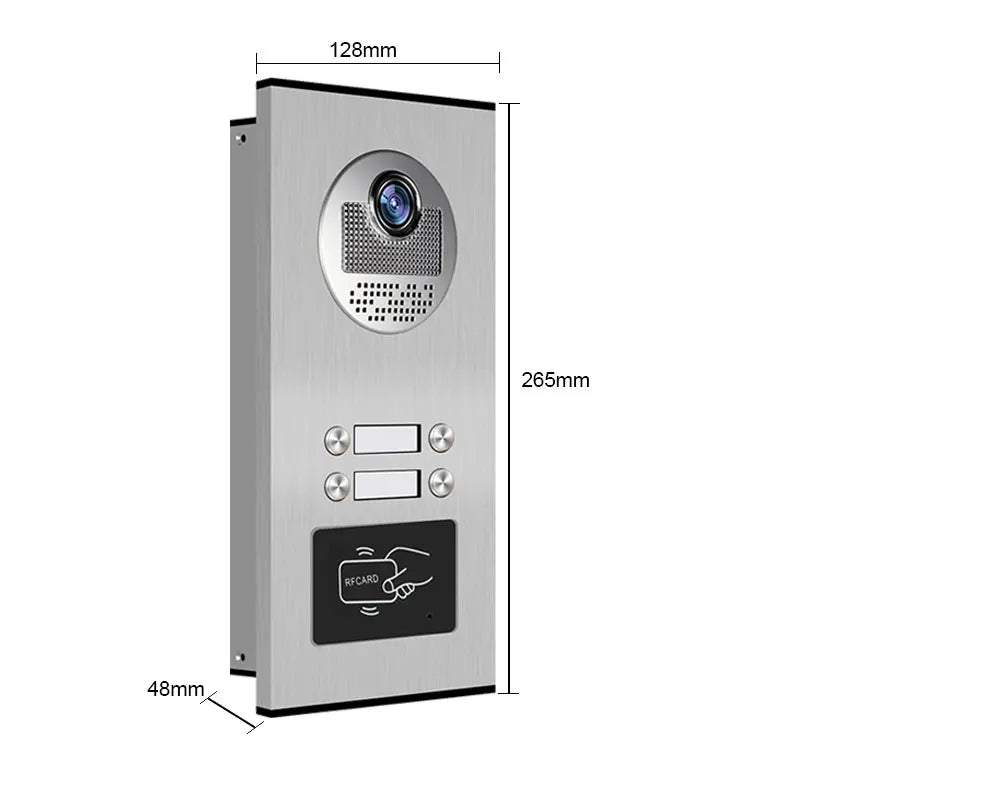

700TVL CMOS IR night vision high resolution door monitor camera, The Outdoor doorbell is constructed using a full aluminum front panel for protection from vandalism, while waterproofing protects from the elements.

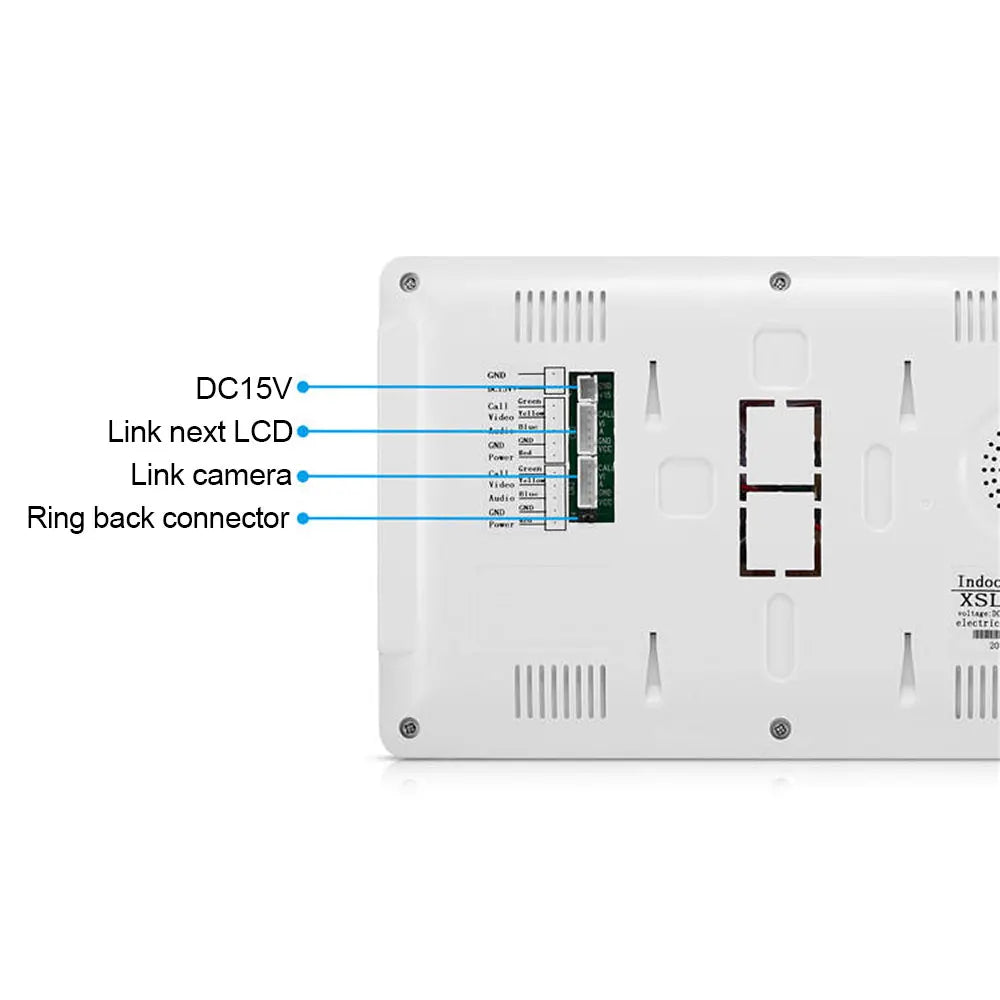

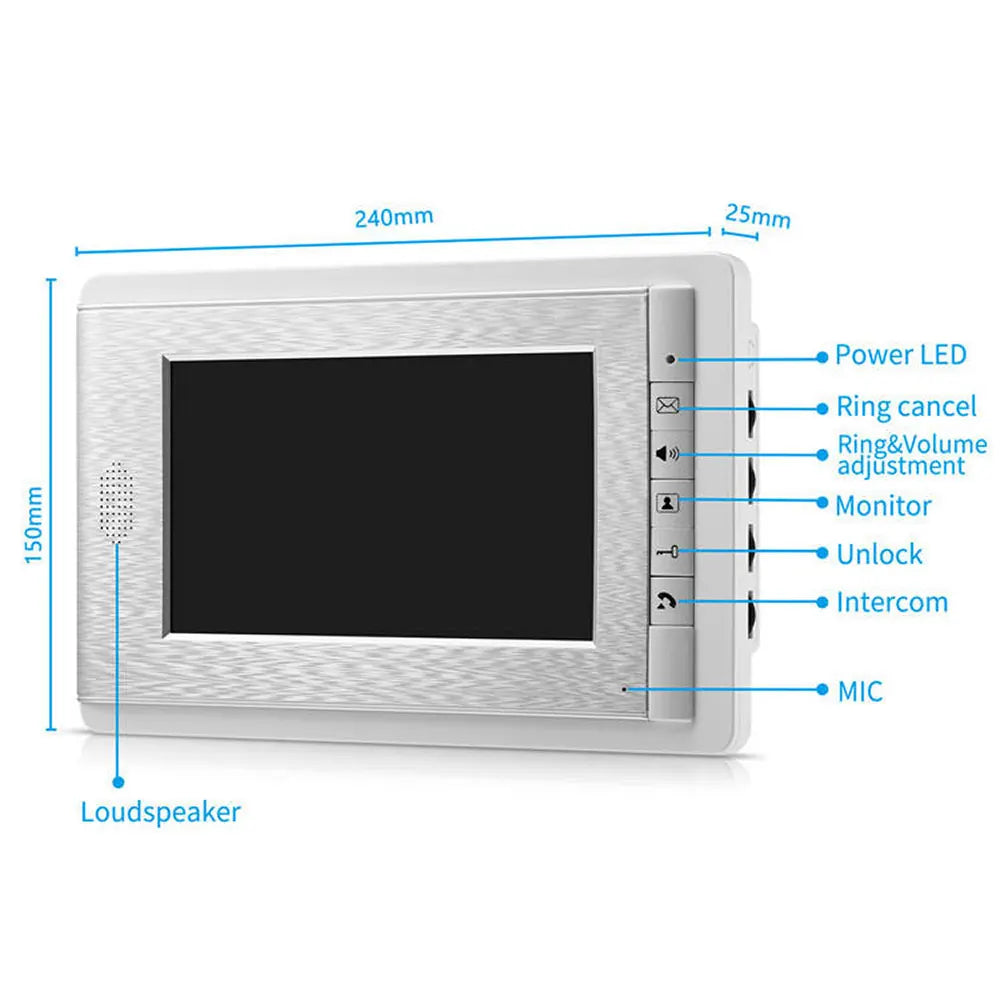

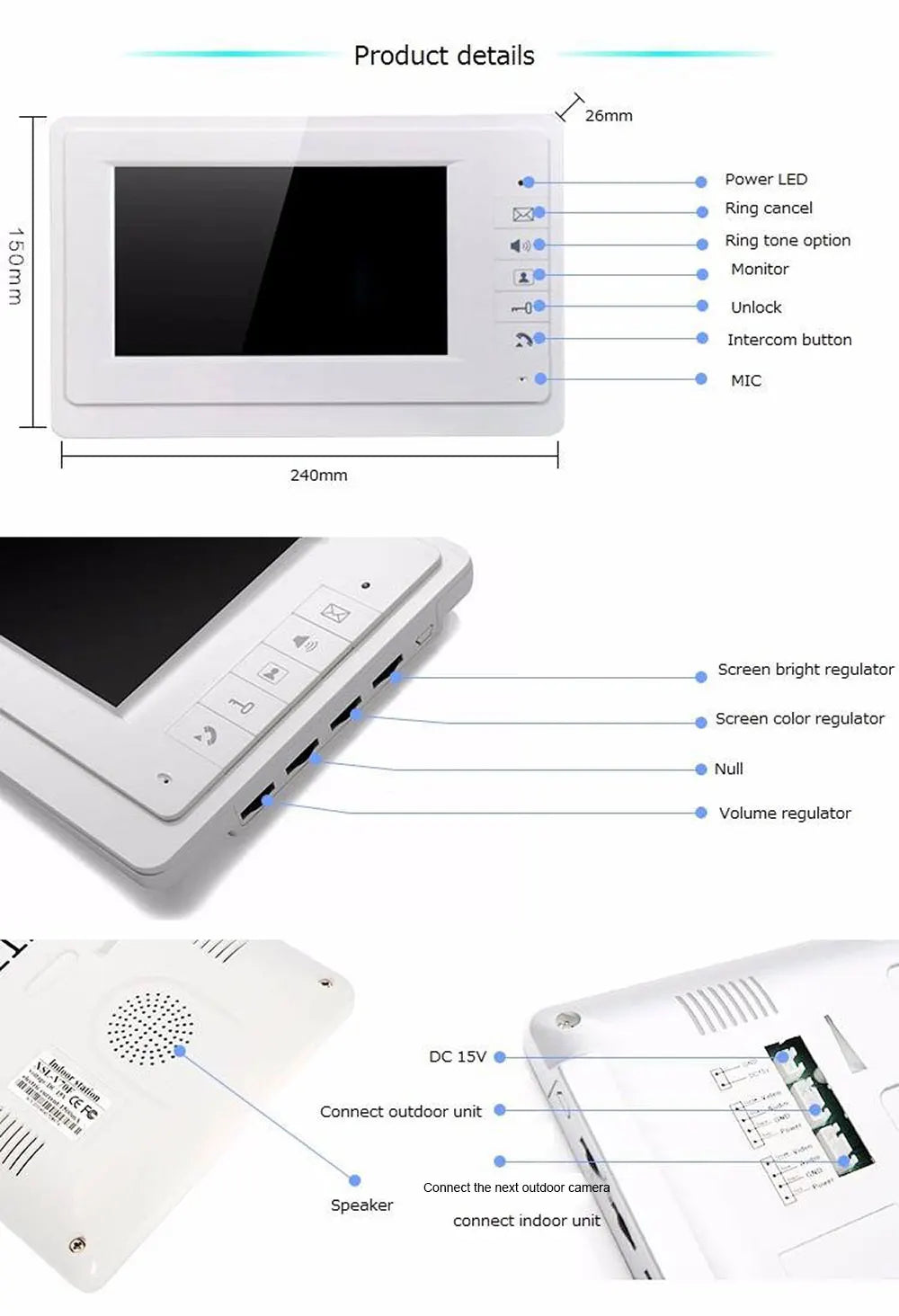

7 Inch LCD screen, door answering, monitoring and unlock, dual-way intercom,16 different kinds of door bells chimes.Volume, brightness and contrast are adjustable.

Easy to install,wired connection stability for home security.Can be used in apartments,villas,hotels,offices,public buildings.Support video intercom Max 2 monitors. (Note: if you need RVV-4 Wire for the indoor unit and outdoor unit connection,

1. Handsfree dual way Intercom and Indoor Monitor 25 Ringtones

When a visitor ring the bell, the monitor will be activated and show the image outside. Press the answer button, then you can talk to outside, press the answer button again to turn it off. If you do not press the button after conversation is finished or if no one answer the call, the monitor will turn off automatically after 60s.

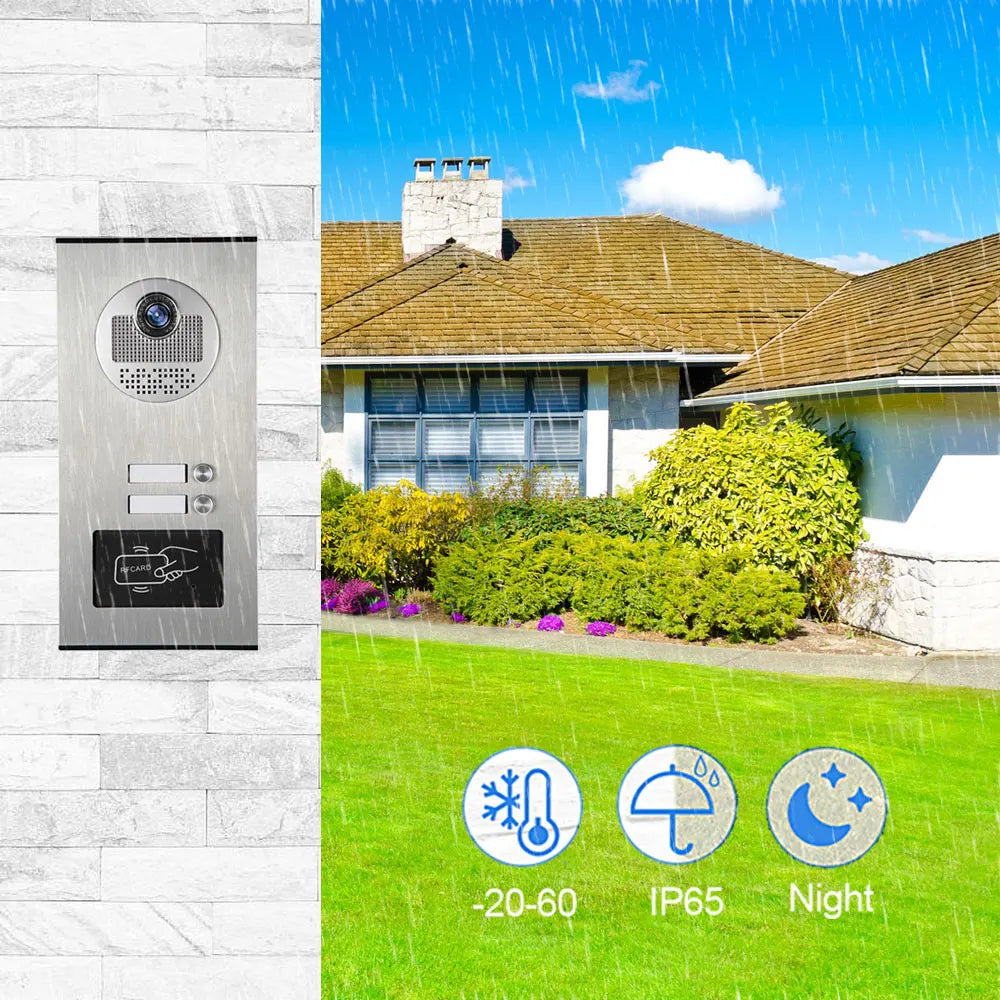

  2. Waterproof & Rainproof

This outdoor camera can be used even in very bad weather. You can install it at outside.

  3. With white LED night vision

The outdoor camera build-in 4 white LED light. With this function, you can see outside no matter day or night.
Keep your home more safer.

  4. One key to unlock

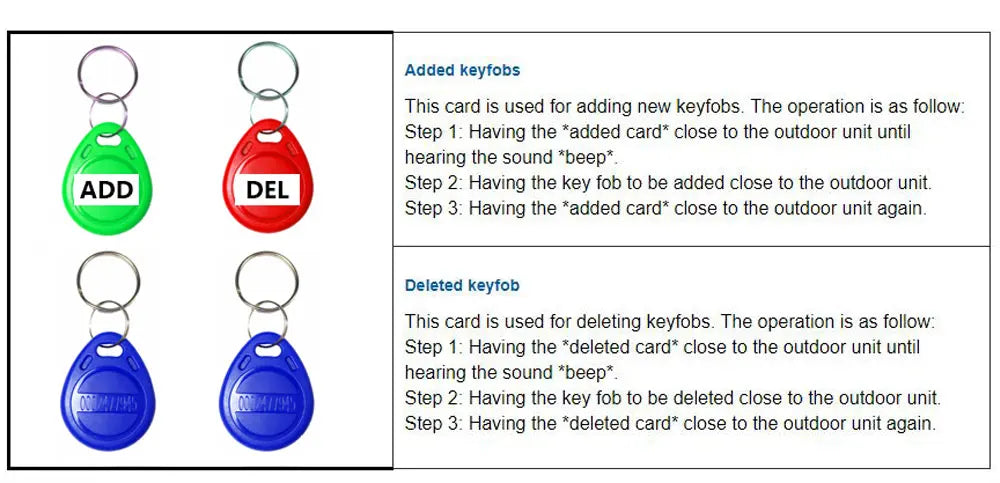

There are several ways to open the door lock when you are outside the door: using the RFID keyfobs or the remote control set. This item comes with 10 RFID keyfobs(including added keyfob and deleted keyfob) . Besides, if you need more RFID keyfobs, you can add the quantity of the RFID keyfob as you like.

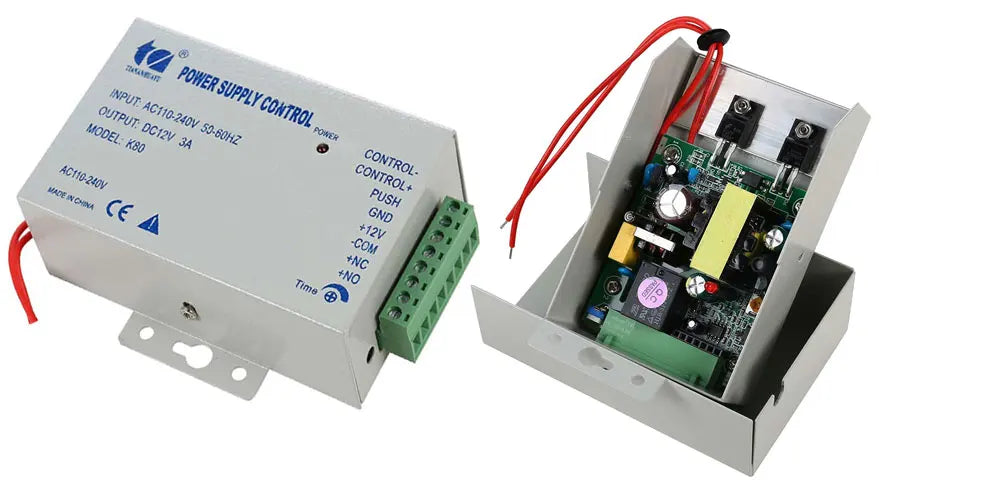

Power Supply Controller

This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.

• It controls electric lock directly.

• Can reduce the load of access controller, save wiring to reduce the hidden trouble

• Based delay control circuit, lock time can be in 0-15 seconds

• Automatic protection function, unexpected situations such as when the power supply

• short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off

• Operative device: E/M Lock, Access Controller, Exit Push Button.

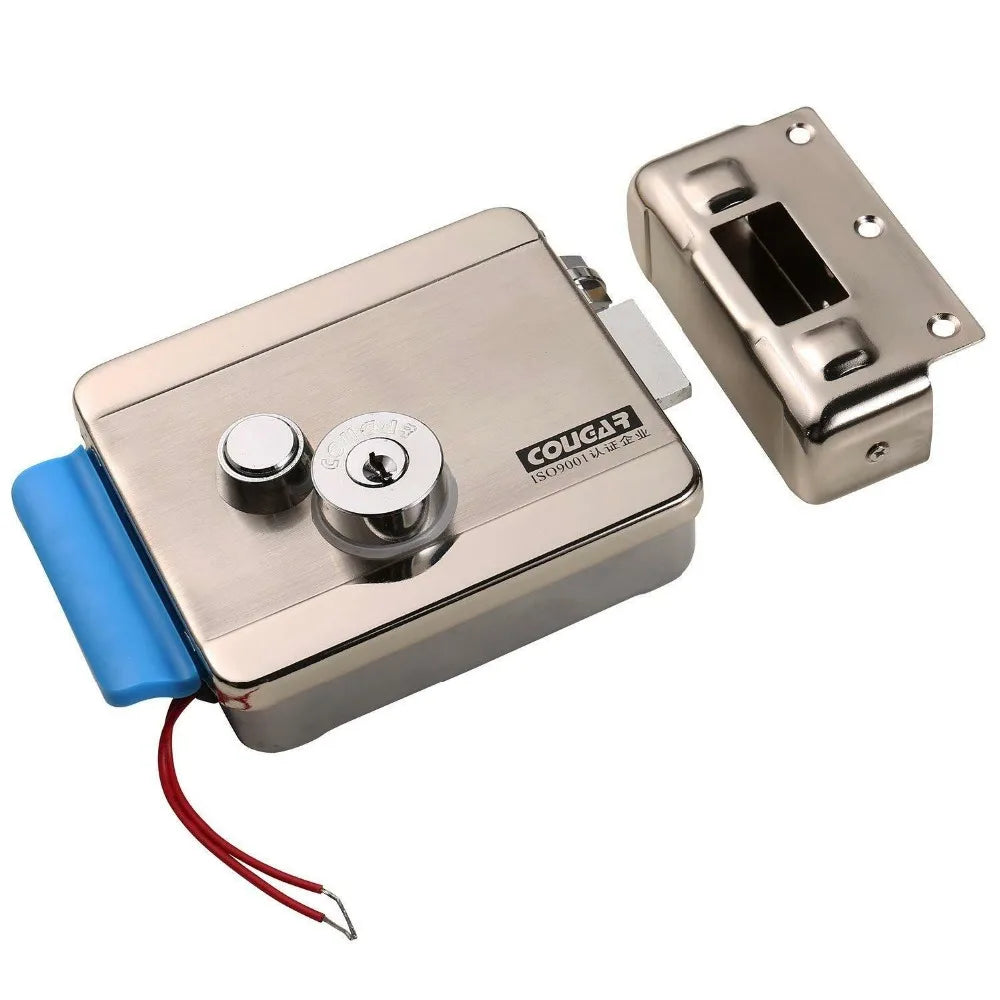

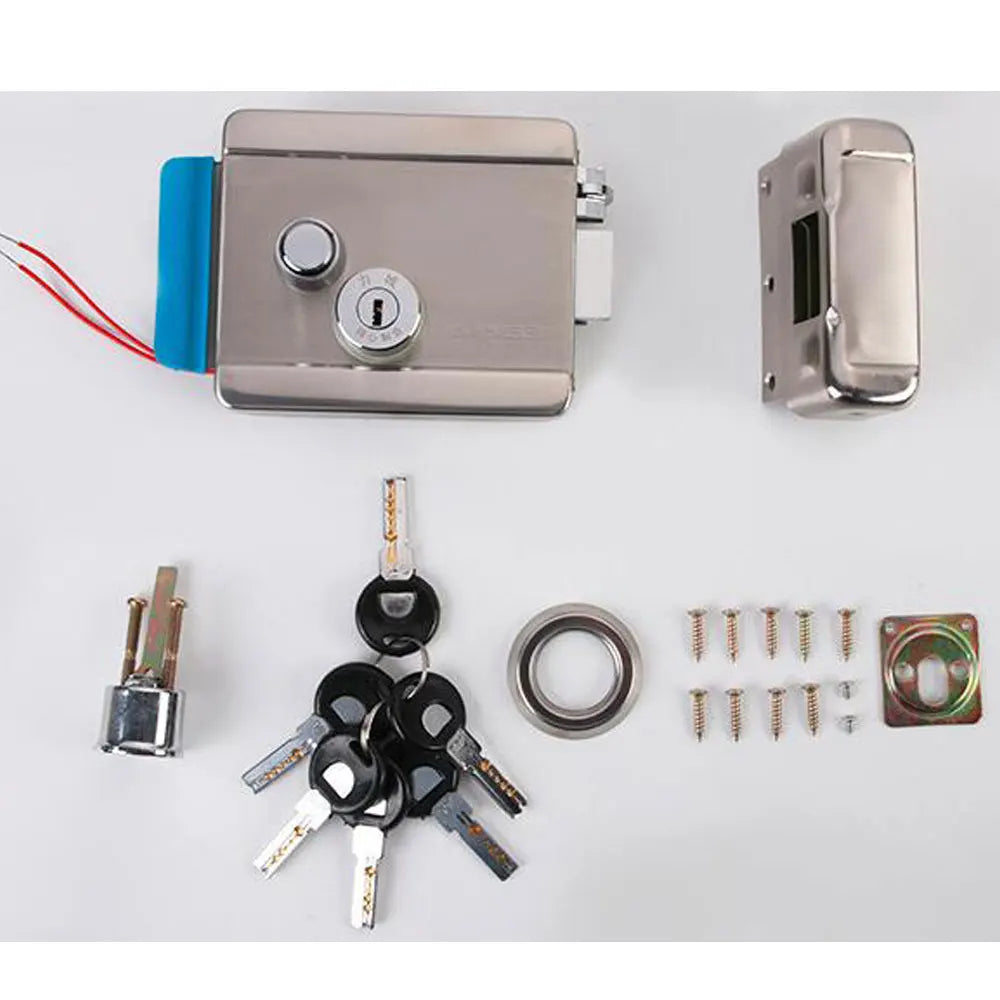

Electric Strike lock

Electric Electronic Door Lock DC 12V for Doorbell Intercom Access Control Security System

Main Feature
Very Good Quality Item.
Adopting the most advanced mechanical design, production technology in Taiwan.
Can work with wood door, steel door, stainless steel door.
Static electricity power consumption, long service life, strong security.

Specifications
Can suit both Left and Right hand door (by rotating the lock 180 degree)
NO (open when powered) Fail Secure Operating Mode
Can work with all the video intercom system in my store

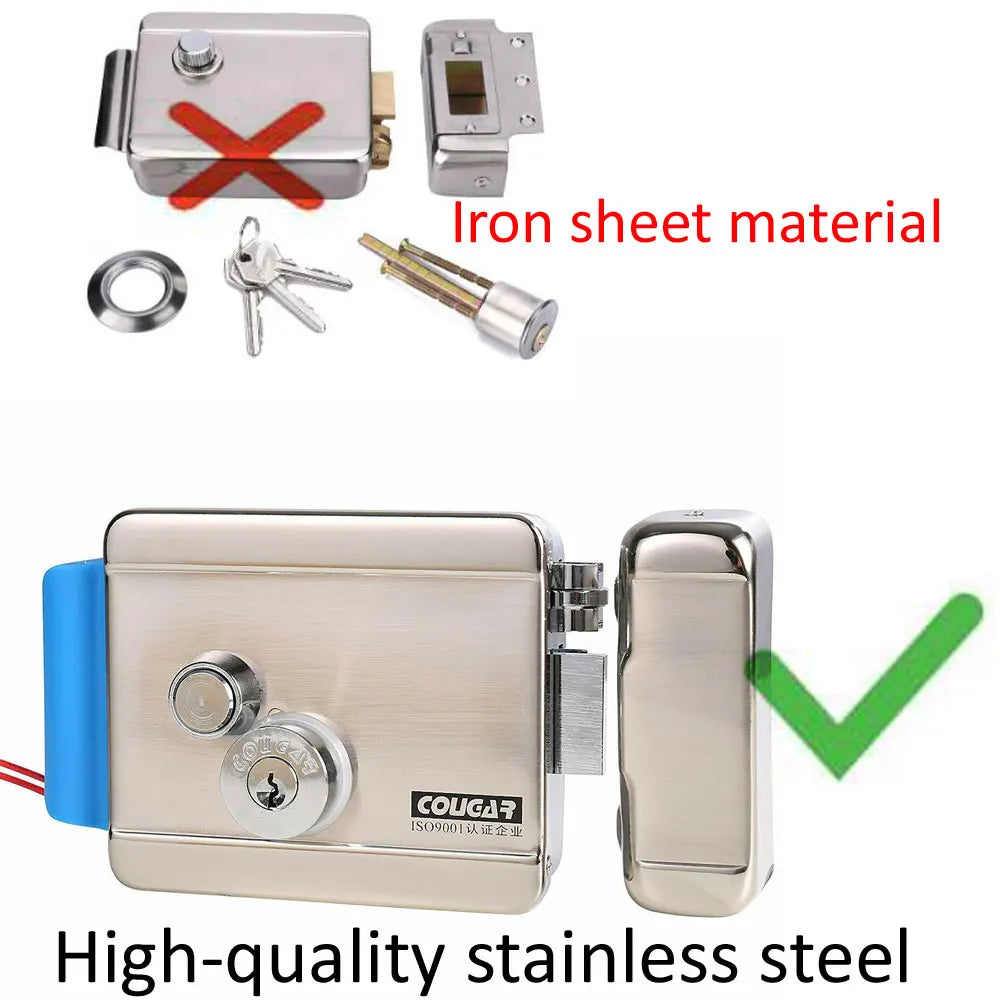

High-quality stainless steel
High anti-theft and high safety
Double lock heads inside and outside
With electronic-control unlocking unit and a spring adjusting balance unit
Easy to install
User friendly
Support manual unlocking, 3 keys included
Suitable for : home, offices, schools, hotels, factories, warehouses, etc
Certification: FCC, CE

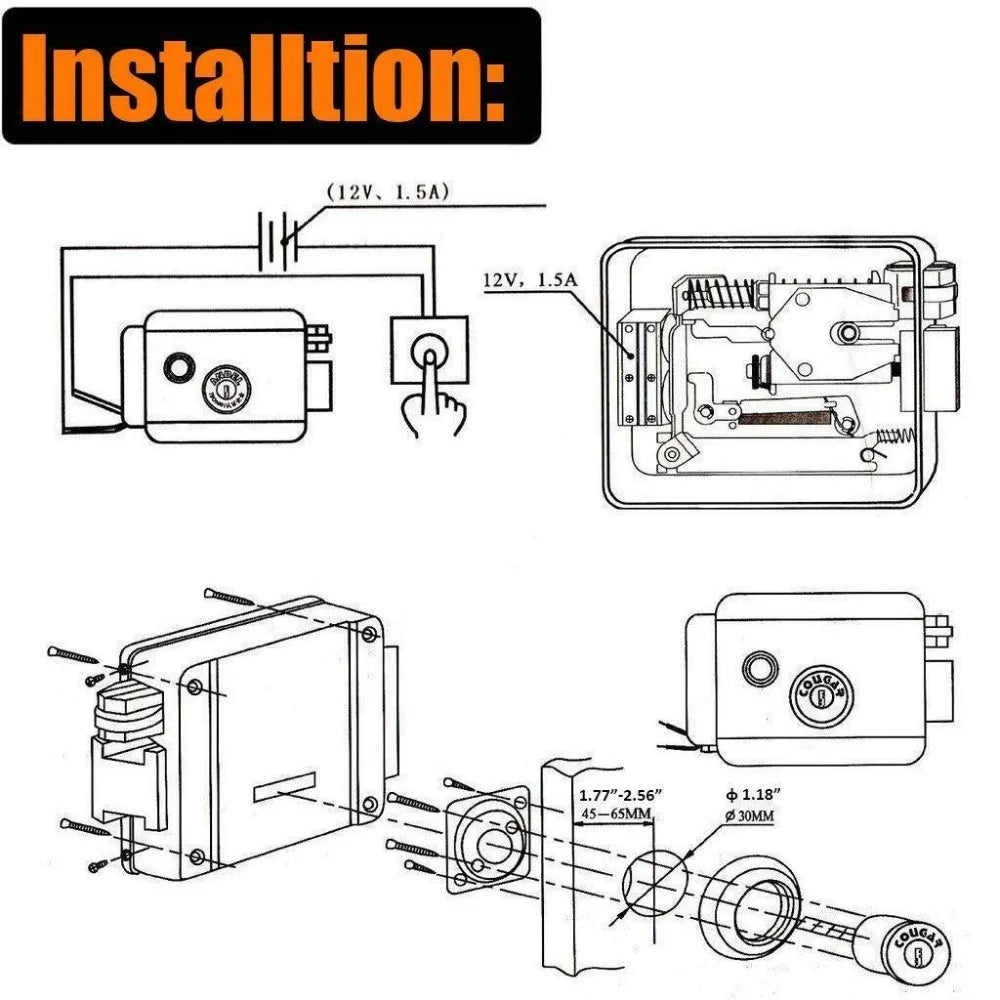

Technical Information:
Voltage : DV 9 ~ 12V, 1.5A
Power : > 12W
Operating Mode: NO (open when powered)
Dimensions (strike):
- Approx. 36 (W) x 102 (H) x 51 (D) mm
- Approx. 1-3/8" (W) x 4" (H) x 2" (D) inch
Dimensions (main body):
- Approx. 123 (W) x 105 (H) x 35 (D) mm
- Approx. 4-3/4" (W) x 4-1/8" (H) x 1-3/8" (D) inch



• NC Mode - (Locked while supplied with power) Unlock Safe Mode.

• If you need NO mode, please contact us before bidding.


• Made of Stainless Steel


• Performance Testing: 1000000 times aging test


• Opening Mode: 90 degree swinging door


• Authority Certification: CE & MA Approved

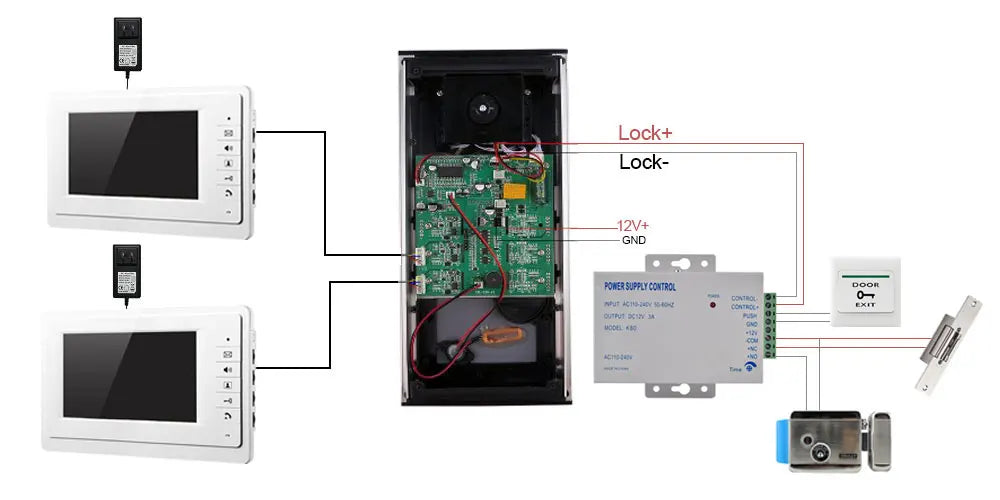

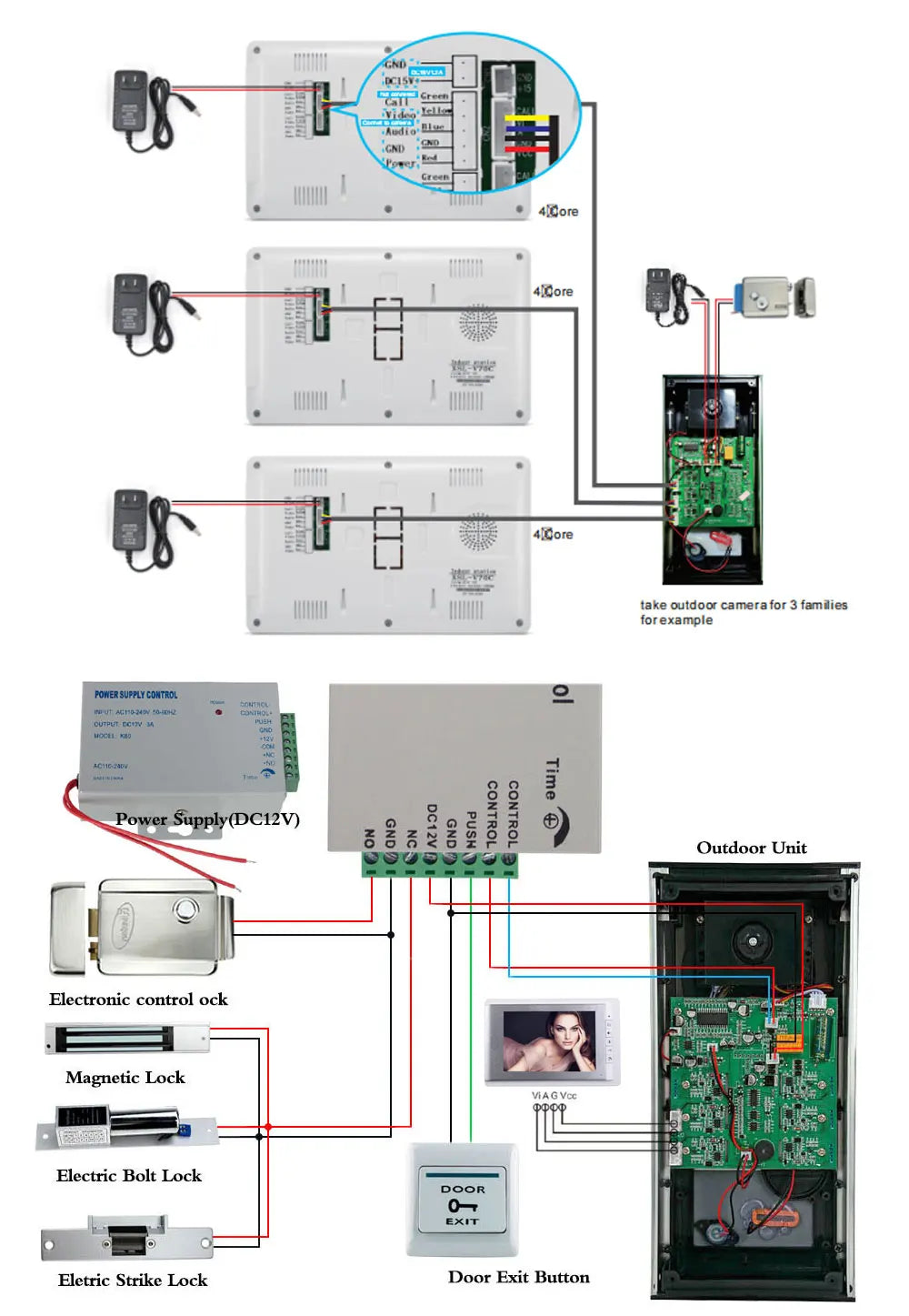

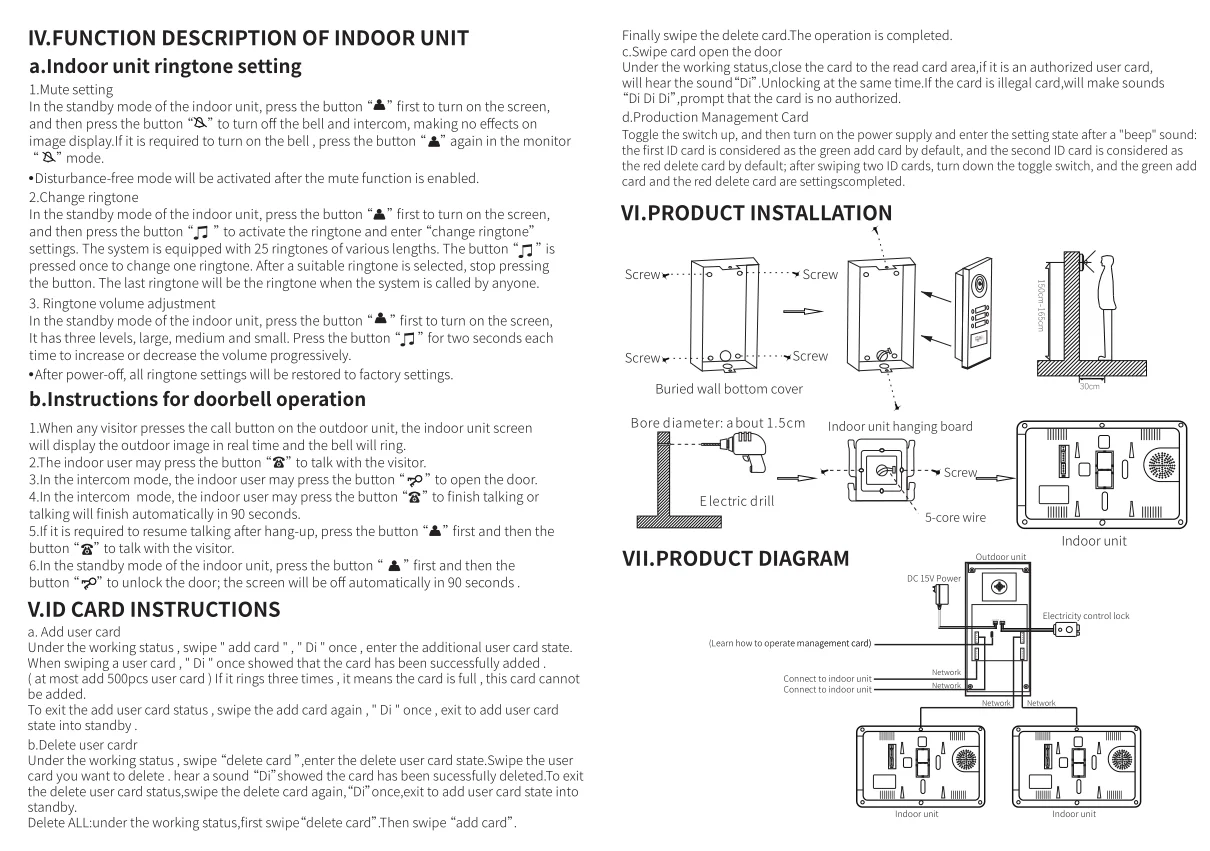

Wiring diagram:

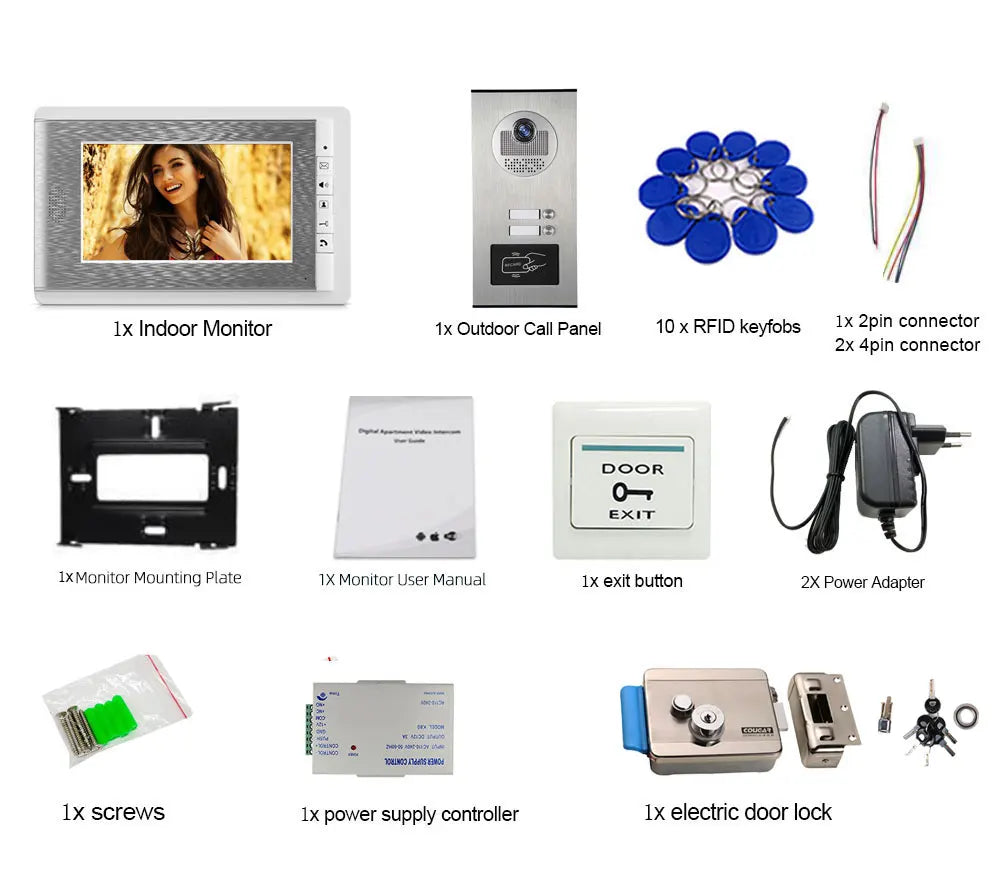

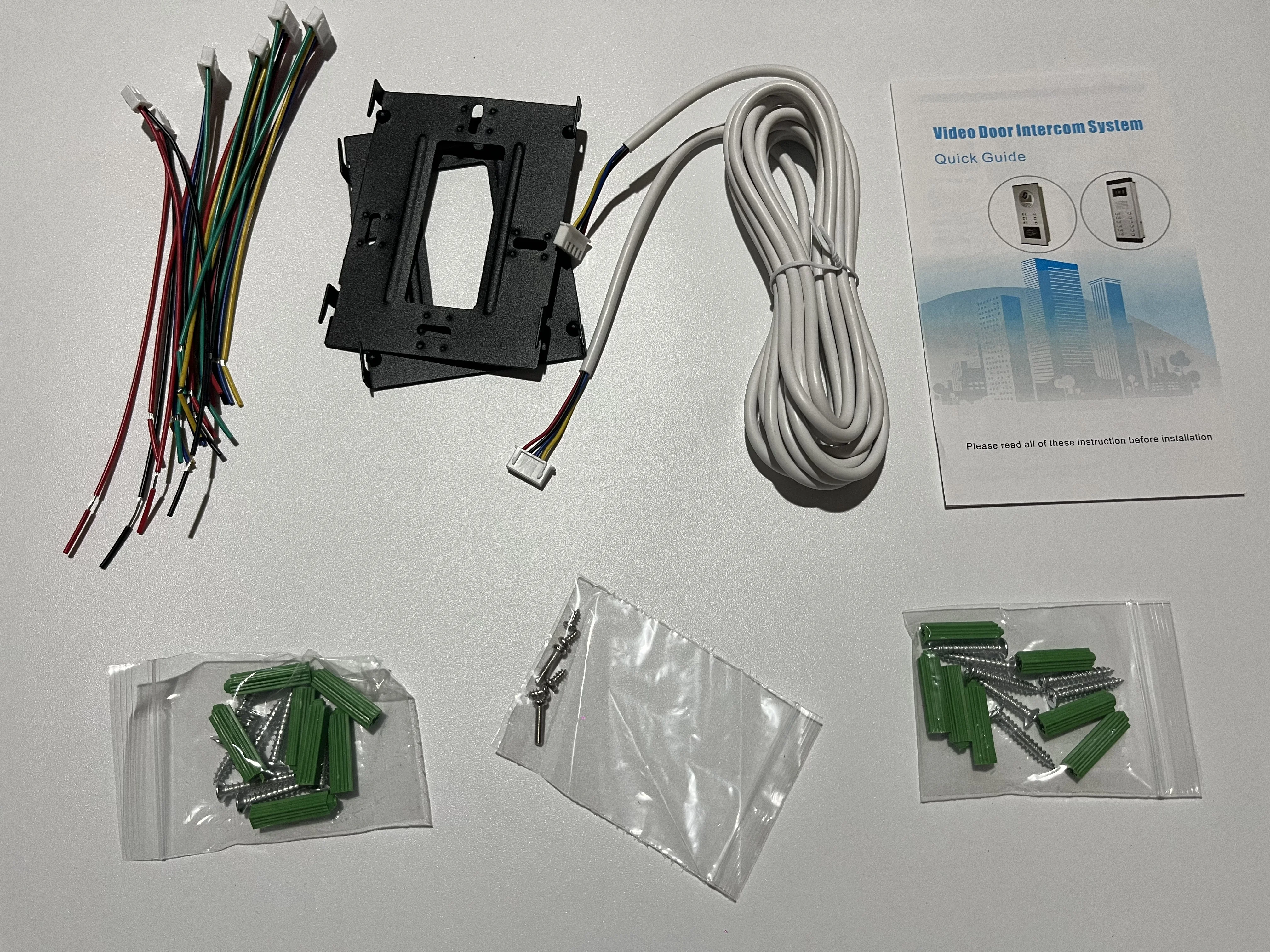

Packing list：
