4-Wire 7" Video Door Phone Intercom System for 3-Apartment

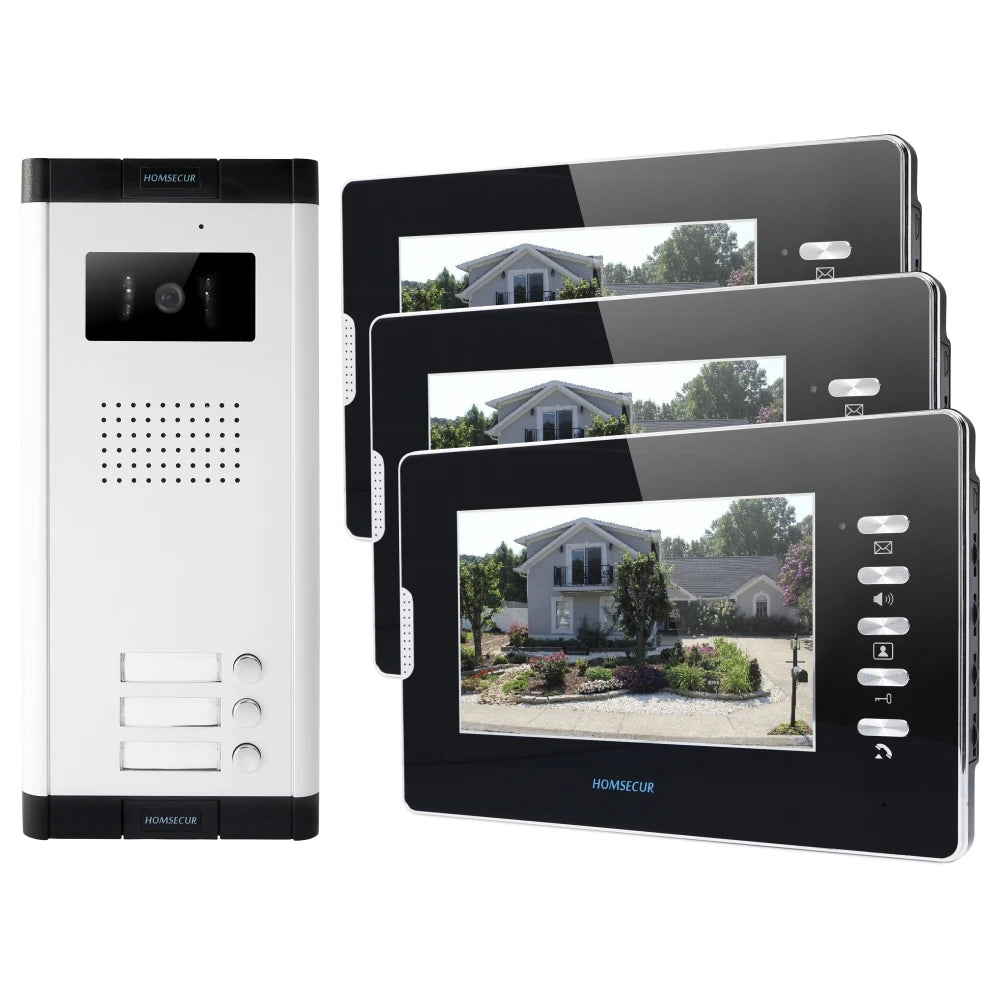

1 x Outdoor Unit and 3 x Indoor Monitors

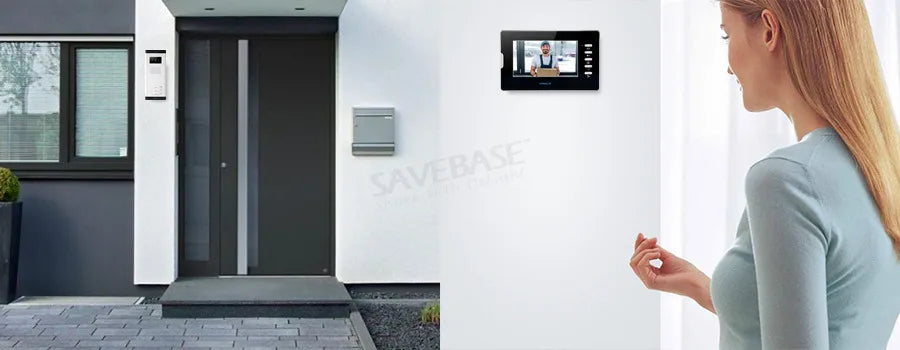

Video Intercom is a system that enables you to receive "calls" from your front door or some other door on the outside of your building, which enables you to actually see who is at the outside station and talk to them. It adds security and peace of mind to your house.

The 3 apartments/families system supports Handsfree 2-way Intercom, Indoor Monitoring, Indoor Unlocking, Night Vision and Mute Mode. Besides, it is a 4-wire system, the installation is not difficult, both of the outdoor unit and indoor unit have plug-and-play connector. It is a great system for home intercom and security.

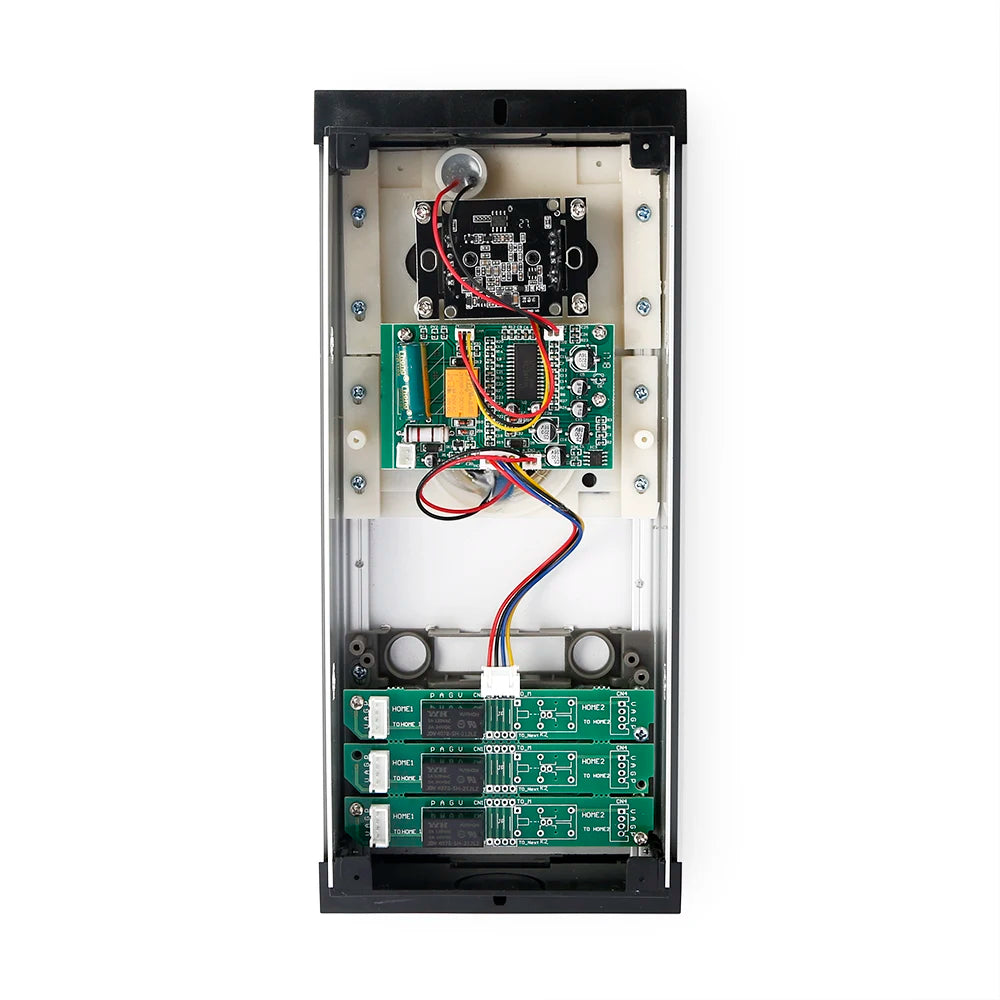

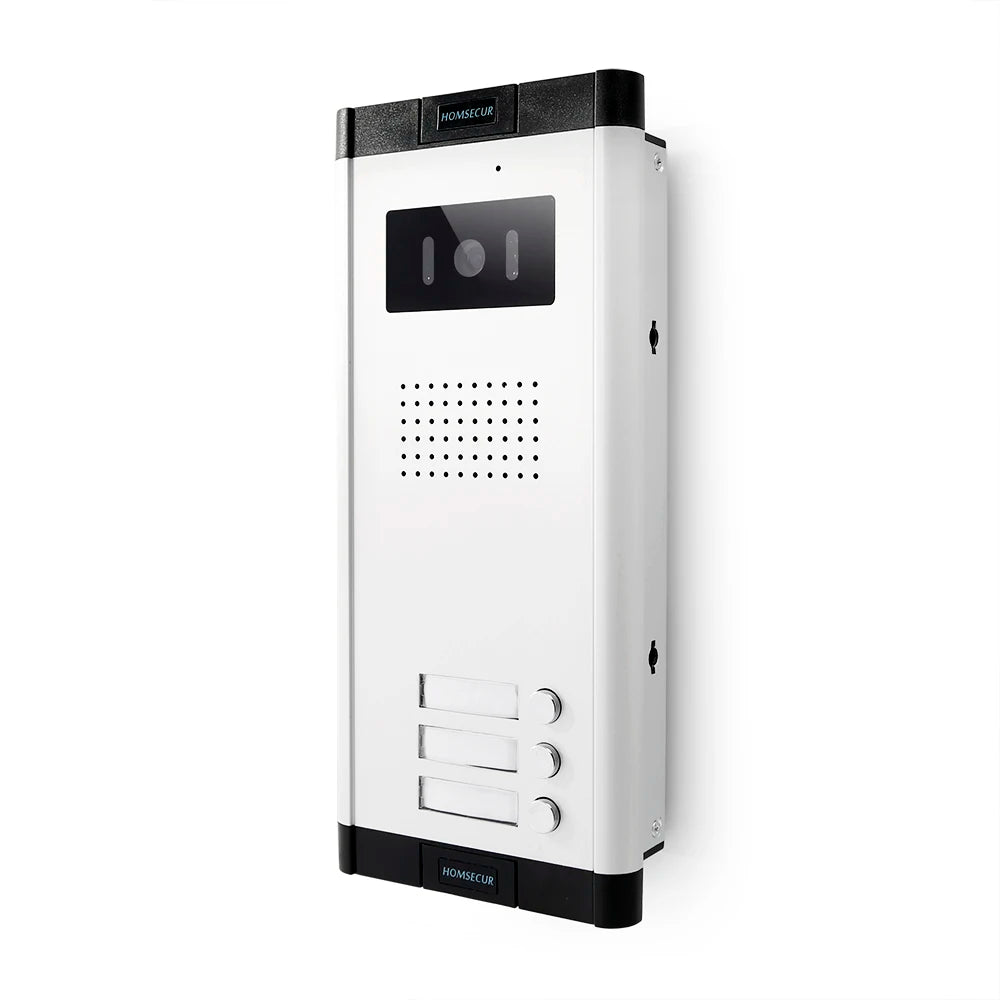

Outdoor Camera

The outdoor unit has 3 call buttons to call 3 houses separately. It has a built-in 700tvl camera to let you see who is at the door clearly, its built-in IR sensor and IR lights enhance the night view, the aluminum alloy outer casing also provides a good protection.

» 700TVL camera

» Built-in 5 IR lights for night vision

» Dual-way intercom

» Power from indoor monitor

» Aluminum alloy shell

» 4-Wire connection

» Room number slot

» 3 Call Buttons

Specifications of Outdoor Camera

• Model No.: XC061-3

• Sensor: CMOS

• Horizontal Resolution: 700TVLine

• Lens: 3.6mm

• Min. Illumination: 0.1Lux

• View Angle: 90°

• IR Distance: 2m

• Ingress Protection Rating: IP54

• Dimension(WxHxD): 123 x 275 x 44 mm

• Net Weight: 610g

• Material: Aluminum Alloy

• Working Temperature: -20°C~+60°C

• Installation: Flush Mount

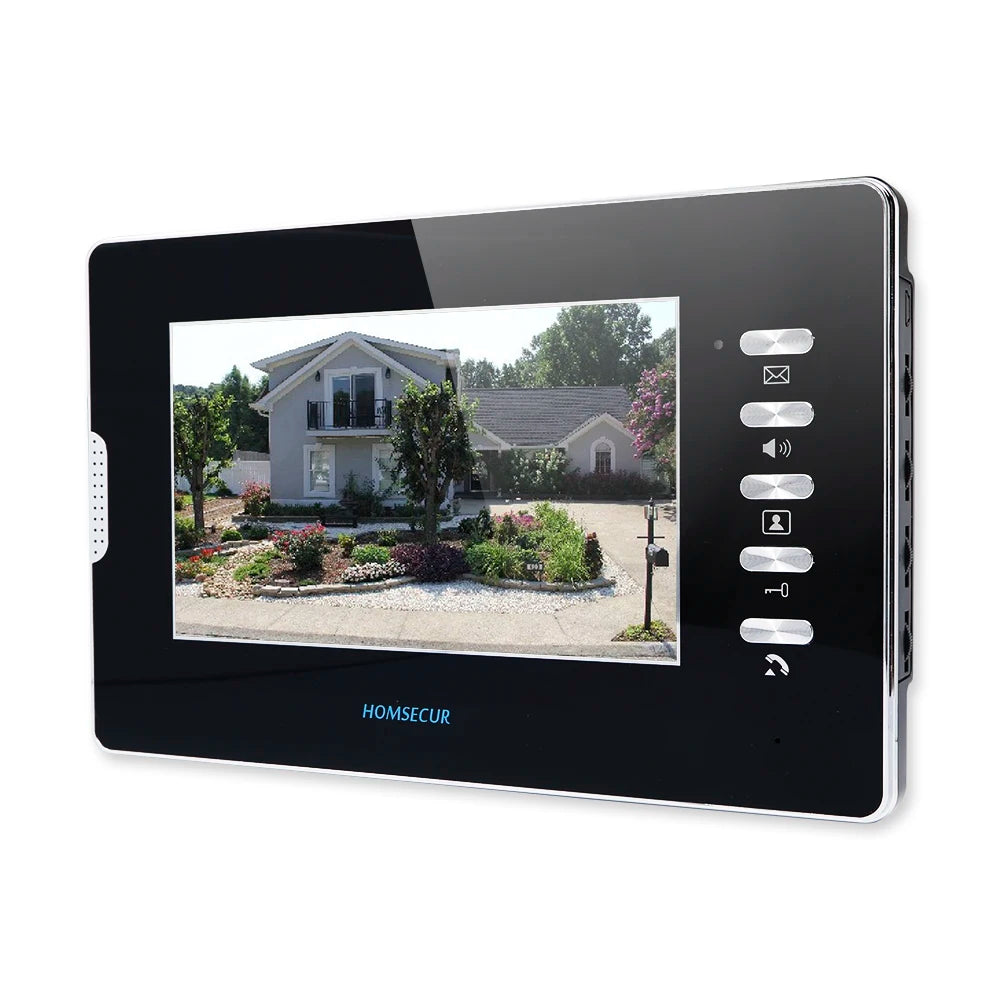

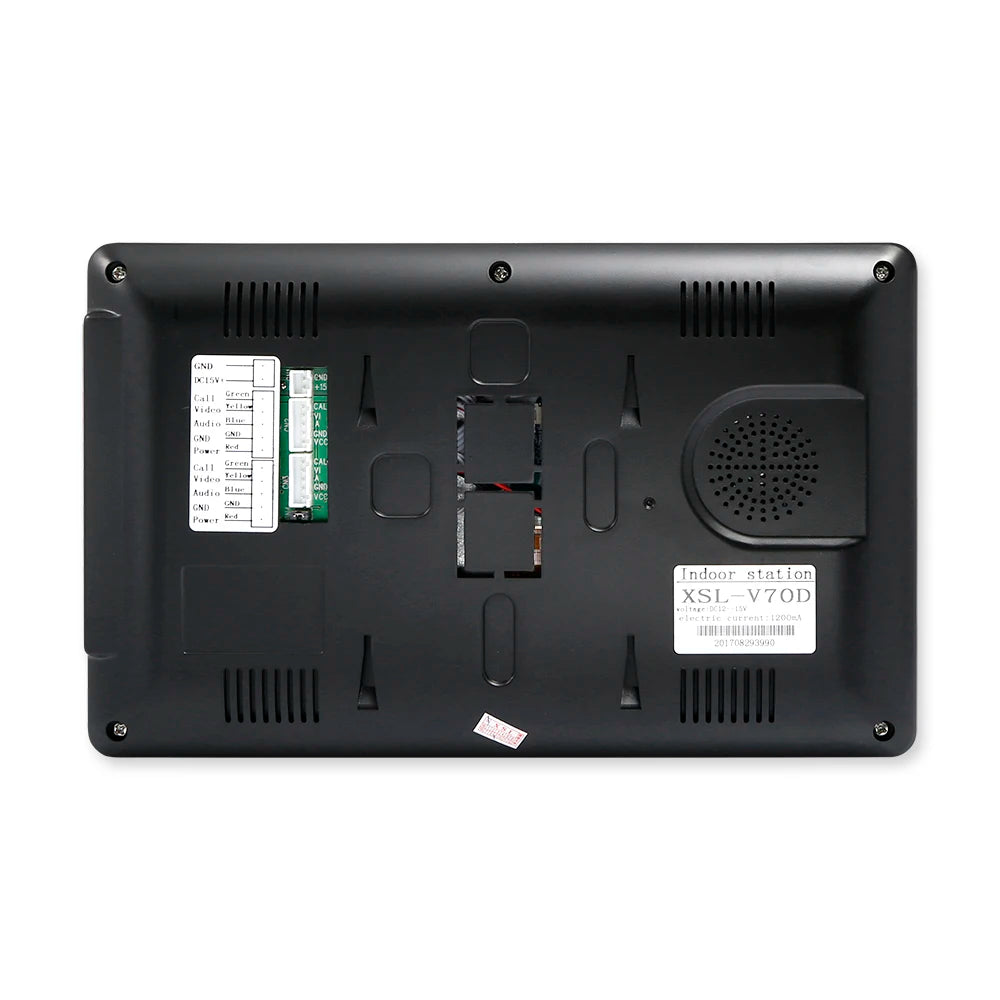

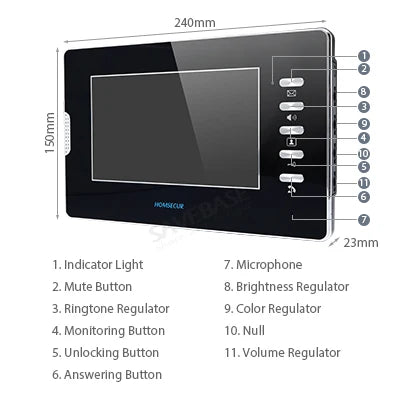

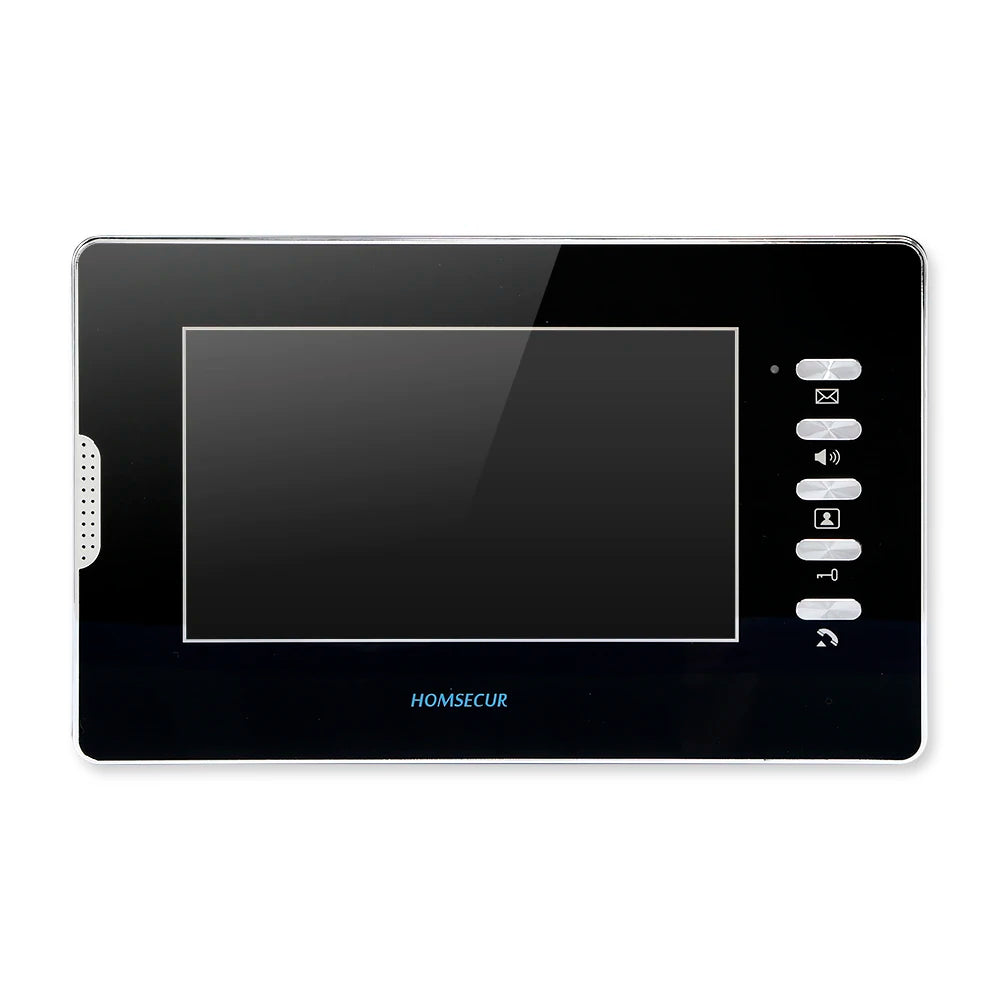

Indoor Monitor

The indoor monitor with 7" LCD color screen gives you great view and its fashionable appearance also makes it look more modern.

» 7" TFT LCD Color screen

» Varieties of ringtones for choice

» Hands-free intercom, indoor monitoring and Unlocking

» Adjustable Color, Brightness and Ringtone Volume

» Power from Power adapter

» Mute Mode

Specifications of Indoor Monitor

• Model No.: XM702-B

• Screen: 7″ TFT LCD

• Effective Pixels: 800×480

• Ringtones: 36

• Call Holding Duration: 30s

• Monitoring Duration: 90s

• Power Consumption (working): < 10W

• Power Consumption (standby): < 0.5W

• Adapter Input: AC100-240V, 50-60HZ

• Adapter Output: DC15V/1.2A

• Dimension(WxHxD): 240 x 150 x 23 mm

• Net Weight: 420g

• Material: PMMA Panel and ABS

• Working Temperature: -20°C~+60°C

• Installation: Surface mount

• Cable for Monitor-to-Camera: 4 core

Handsfree Dual-way Intercom and Indoor Monitoring

The outdoor unit has three call buttons, the visitor can call separate room. When a visitor rings the bell, the monitor will be activated and shows the image outside, then you can see and hear outside. Press the answer button, then you can talk to outside, press the answer button again to turn it off. If no one answers the call, the monitor will turn off automatically after 30s. It supports monitoring feature, press the monitoring button, you can see and hear outside situation.

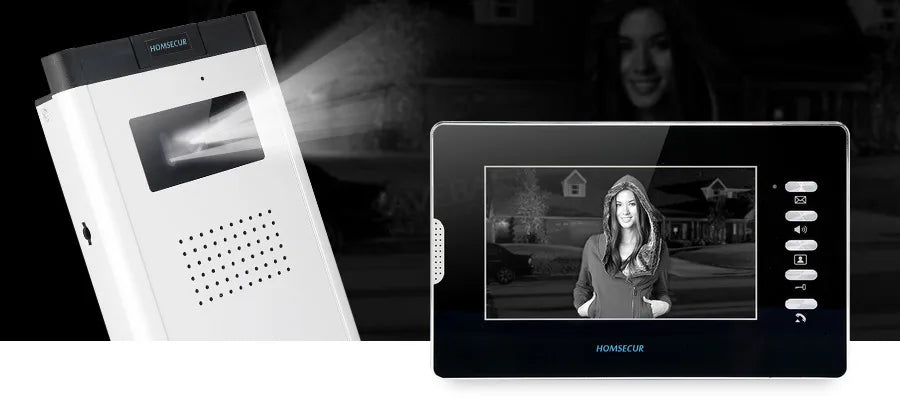

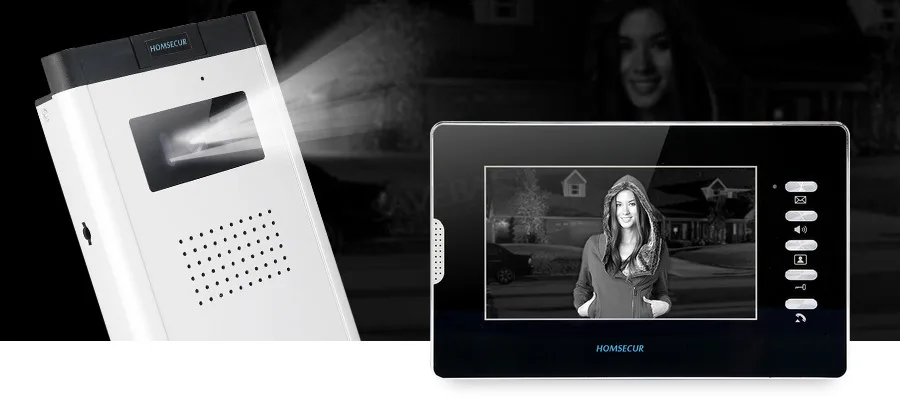

Built-in IR Lights for Night-vision, allow see clear image at night

The outdoor unit embeds in 5 pcs IR lights and IR Sensor. The IR sensor can control the leds according to illumination intensity. At night or at low light status, the IR lights turn on automatically and the screens show black and white image.

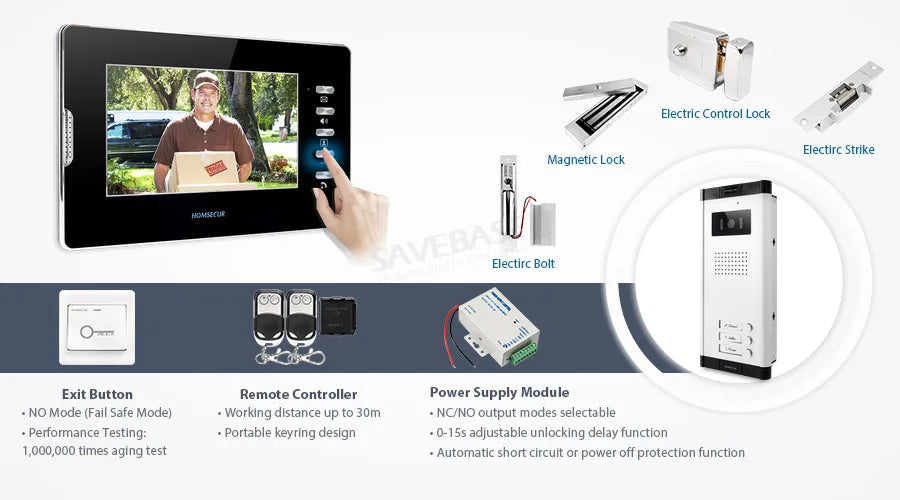

Compatible with Electric lock, keep house safer

This system can work with 12V electric lock. With this function, you don't need go to the door to unlock for your guest, just press unlock button on the monitor, which brings great convenience.(Please note the electric locks, exit button, remote controller and power supply module at below photo are not included in this kit. If you need them, please contact us)

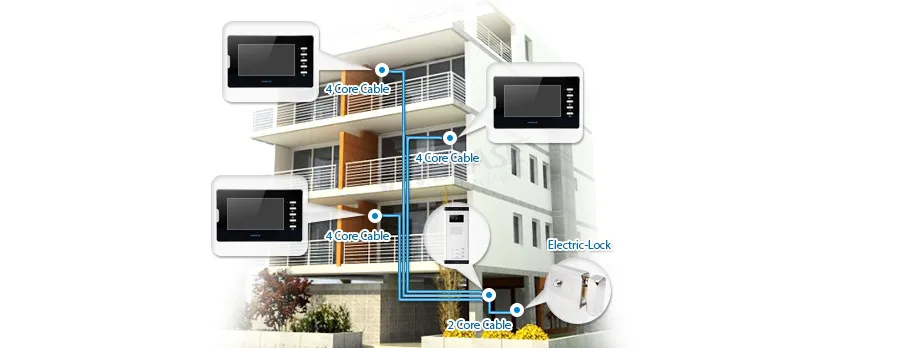

Applications

This apartment door phone system is mostly used in 3 units apartment or 3 families house, which allows the visitor to call separate room directly. (The electric lock is not included)

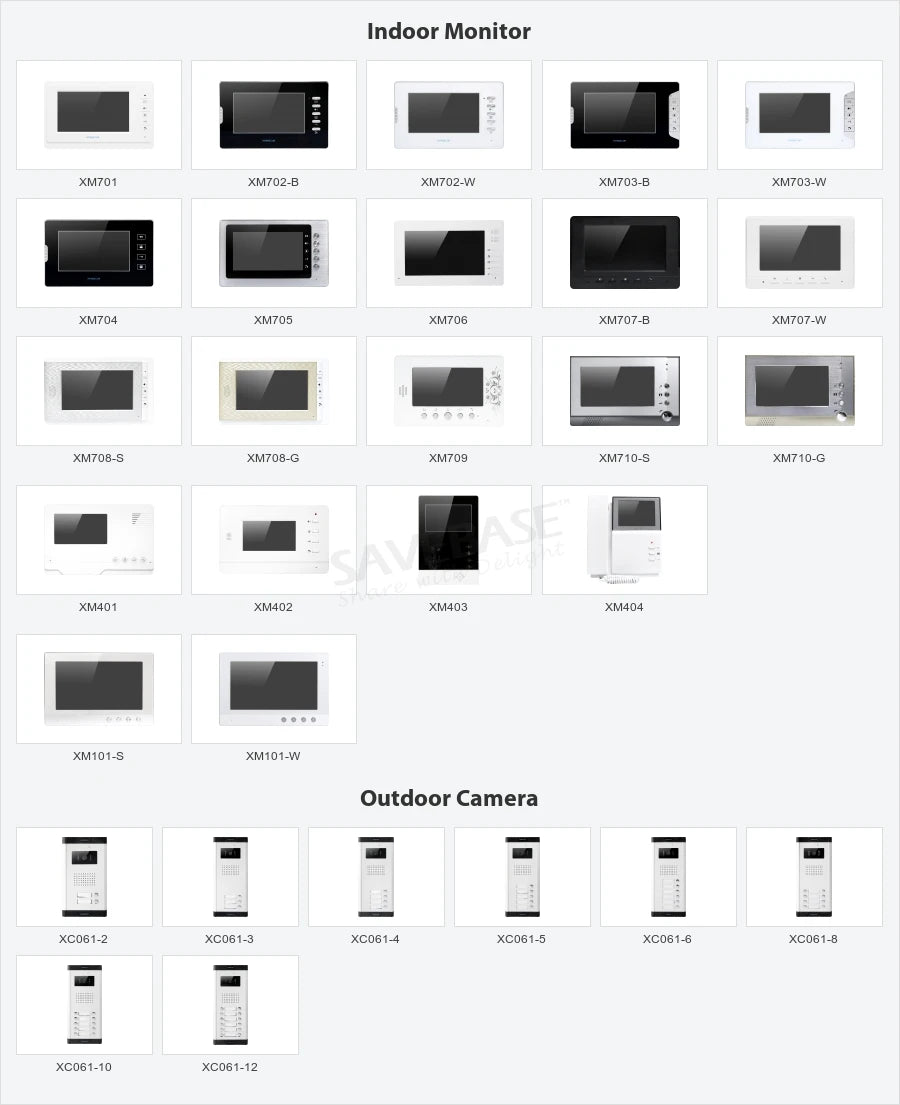

Varied Models for Your Choice

We provide more options for indoor units and the outdoor unit (2, 3, 4, 5, 6, 8, 10, 12 units). If you need, please contact us for quotation with the specified models.

FAQ

Q: Can I use cat5/cat5e/cat6 cable to do the connection?

A: Yes, you can use these network cable. But the cable length cannot exceed 30m.

Q: Is the outdoor unit waterproof?

A: The outdoor unit is not waterproof. We suggest you mount a cover for protection.

Q: What is the max distance this system supports?

A: We suggest you use it within 100m.

Q: What kind of cable should I use?

A: We suggest you use 4 Core Cable with copper conductor. Please check the cable requirements.

Requirements Of Connection Cable(For Reference)

0-10M: RVV4 *0.3mm²

10-30M: RVV4 *0.5mm²

30-50M: RVV4 *0.75mm²

50-100M: RVV4 *1mm²

Kind Reminders

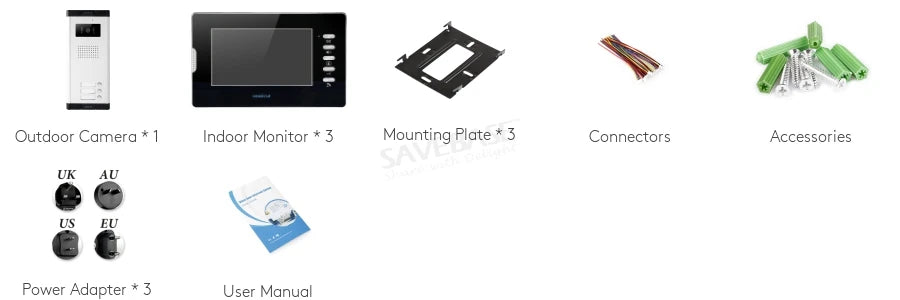

1. We provide cable connectors in the package, you can use the connectors to connect with your cable.

2. In case of the damage during transportation, we place a protective film on the screen. You can tear it down if you don't like it.

3. Please install the products according to the instruction manual to avoid of damaging the products.

4. Please do bench test this system before installing.
